Setup IAM user, EC2, S3

Create IAM User

Login into your root account or an IAM account with full administrative right, then search IAM dashboard. iam-dashboard Click the users, then click Create user button iam-users Choose I want to create an IAM user create-iam-1 Attach 2 permssion to the account: AmazonEC2FullAccess and AmazonS3FullAccess create-iam-permission-1 create-iam-permission-2 Review account info before creation create-iam-review Save your password for later use create-iam-password Generate access key for later EC2 SSH connection. Open the newly create account info create-iam-ac-1 create-iam-ac-2 create-iam-ac-3 Download .csv and save for later use create-iam-ac-4

Then login to your newly create IAM account. iam-user-login iam-user-logged-in

Create S3 Bucket

Open the S3 panel, click the Create bucket button. s3-panel Type the bucket name and choose General Purpose bucket option, keep the ACLs option as default. create-s3-1 Uncheck the Block all public access checkbox and check I acknowledge the current settings might result in this bucket and the objects within becoming public in the warning box. create-s3-2 Keep all other options as default and click Create bucket. create-s3-3 create-s3-4 create-s3-done

Create security group

Open the VPC dashboard, click the Security Groups tab on the left navigation bar. vpc-dashboard Click Create security group. sg-panel Type the security group name and description, choose the VPC network that this security group applies to. create-sg-1 Setting inbound rules and outbound rules as images below

  • Inbound rules consist of port 22 for SSH, port 443 for HTTPS, port 80 for HTTP. In this project, the server will be configured to listened at port 8080, so another allow rule for the port is added.
  • Outbound rules is keep as default. create-sg-2 create-sg-3 Click Create security group create-sg-4

Create EC2 Instance

Open the EC2 panels, click Create instance button. ec2-panel Type the instance name, choose Amazon Linux 2023 as Operating System and choose the Instance Type.

This project uses FFMPEG to generate HLS Master Playlist to provide multiple resolution, bitrate options for Adaptive Streaming. Since the command for HLS Master Playlist generation consumes large amount of RAM, an instance type with at least 4GB of RAM is recommended. Otherwise, please follow swap memory add-in step in the later section to avoid the ffmpeg command getting SIGKILL signal for RAM overflow.

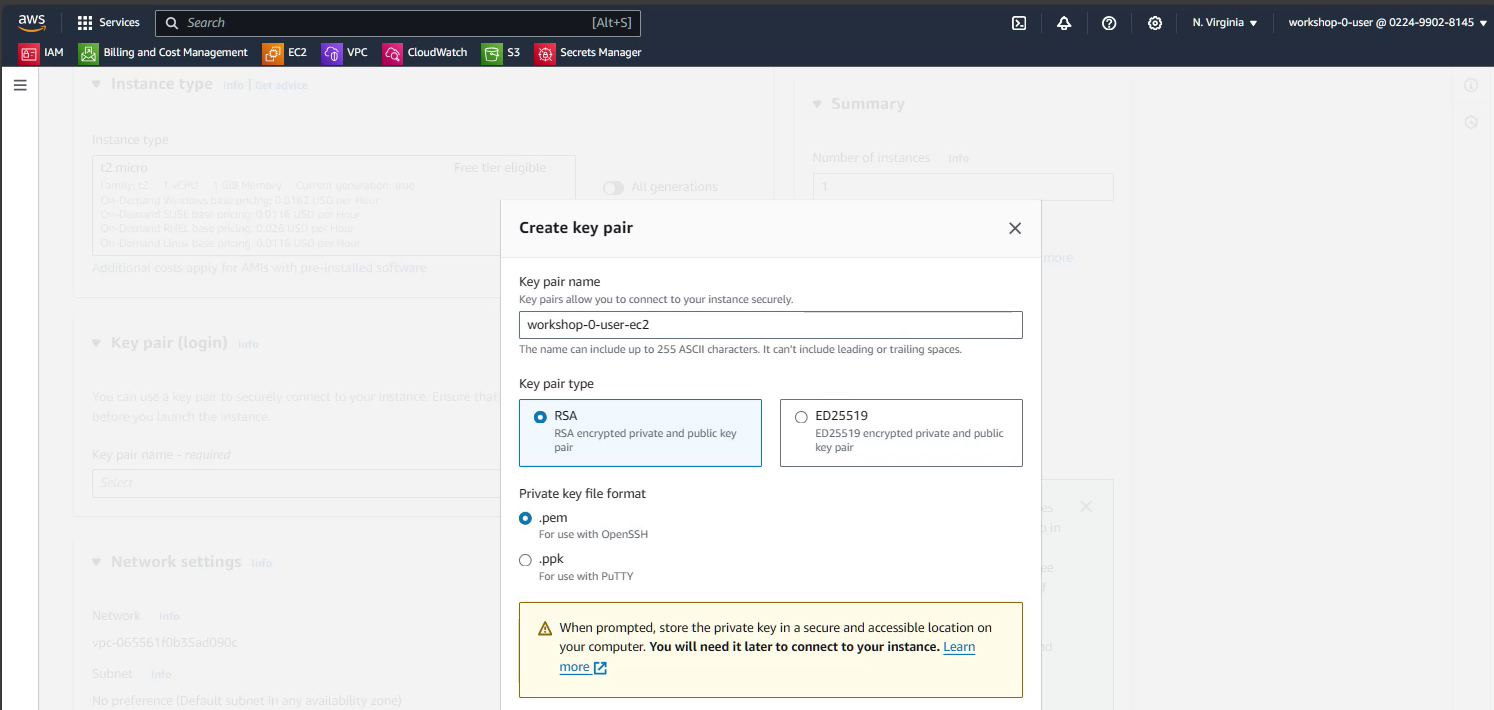

create-ec2-1 Click Create keypair and download for later SSH login session. create-ec2-2 Choose the newly created keypair for authentication. create-ec2-3 Choose the security group created in the previous section. create-ec2-4 Configure the storage, 4GB will be used as swap memory in later section and multiple package will be installed: FFMPEG, s3fs, fuse, nvm, node. So 24GB of storage is configured for this instance. Recheck the instance info, then click Launch instance. create-ec2-5 create-ec2-done
